Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Bahan: | Bahan Komposit Serat Karbon Baru | Teori: | Pompa sentrifugal |
---|---|---|---|
Max Flow: | 400 m3 / jam | Max Head: | 50 m |
Jaminan: | Satu tahun | Sertifikasi: | Ce, Coc, ISO |
Kekuasaan: | 3-200KW | MOQ: | 1 set |
Bahan Serat Karbon Baru Satu Tahap Horizontal Chemical Pump Pompa Anti-Korosi
Tentang Materi
The new carbon fiber composite material is our self-developed high-strength composite material, and has obtained national invention patent (patent number ZL201310597859.0, ZL201310343890.1). Bahan komposit serat karbon baru adalah bahan komposit kekuatan tinggi yang dikembangkan sendiri, dan telah memperoleh paten penemuan nasional (nomor paten ZL201310597859.0, ZL201310343890.1). This material, based on carbon fiber and silicon carbide, with US imported special cross-linking agent, is made by chemically reacting at high temperature, and has extreme high corrosion resistance and wear resistance. Bahan ini, berdasarkan serat karbon dan silikon karbida, dengan agen pengikat silang khusus impor AS, dibuat dengan bereaksi secara kimiawi pada suhu tinggi, dan memiliki ketahanan terhadap korosi dan ketahanan aus yang sangat tinggi. The hardness of silicon carbide is almost as high as that of the diamond, so it has excellent wear resistance. Kekerasan silikon karbida hampir setinggi berlian, sehingga memiliki ketahanan aus yang sangat baik. Carbon fiber can improve the toughness of material to meet the flexural performance. Serat karbon dapat meningkatkan ketangguhan material untuk memenuhi kinerja lentur.
Apa itu DCS?
This material is made of carbon fiber, silicon carbide, and chemically reacted with high-performance coupling agent at high temperature. Bahan ini terbuat dari serat karbon, silikon karbida, dan secara kimia bereaksi dengan zat kopling kinerja tinggi pada suhu tinggi. SiC is the third superhard material with a Shore hardness of 9S (diamonds is 100). SiC adalah bahan superhard ketiga dengan kekerasan Shore 9S (berlian adalah 100). This synthetic material's hardness is nearly same as diamond thanks to SiC. Kekerasan bahan sintetis ini hampir sama dengan berlian berkat SiC. Almost no tools can machined the material, so all pump parts are precision-cast one-shot, with highly accuracy and wear resistance. Hampir tidak ada alat yang dapat mengolah bahan tersebut, sehingga semua bagian pompa presisi-sekali pakai, dengan akurasi tinggi dan ketahanan aus. Carbon fiber is added to this material to meet the mechanical properties required. Serat karbon ditambahkan ke bahan ini untuk memenuhi sifat mekanik yang diperlukan. Due to the use of high-performance coupling agent, it has been determined that there are few free electrons on the surface and there is no possibility of electrochemical corrosion. Karena penggunaan agen kopling berkinerja tinggi, telah ditentukan bahwa ada beberapa elektron bebas di permukaan dan tidak ada kemungkinan korosi elektrokimia. It can resistant to almost 99% of the chemical medium. Dapat tahan terhadap hampir 99% dari media kimia. The maximum working temperature can reach 150°C, and its service life is 6-10 times longer than 2205, CD4MCU,Cr30 etc..This material is made of carbon fiber, silicon carbide, and chemically reacted with high-performance coupling agent at high temperature. Suhu kerja maksimum dapat mencapai 150 ° C, dan umur layanannya 6-10 kali lebih lama dari 2205, CD4MCU, Cr30 dll. Bahan ini terbuat dari serat karbon, silikon karbida, dan secara kimia bereaksi dengan agen penggandeng kinerja tinggi di suhu tinggi. SiC is the third superhard material with a Shore hardness of 9S (diamonds is 100). SiC adalah bahan superhard ketiga dengan kekerasan Shore 9S (berlian adalah 100). This synthetic material's hardness is nearly same as diamond thanks to SiC. Kekerasan bahan sintetis ini hampir sama dengan berlian berkat SiC. Almost no tools can machined the material, so all pump parts are precision-cast one-shot, with highly accuracy and wear resistance. Hampir tidak ada alat yang dapat mengolah bahan tersebut, sehingga semua bagian pompa presisi-sekali pakai, dengan akurasi tinggi dan ketahanan aus. Carbon fiber is added to this material to meet the mechanical properties required. Serat karbon ditambahkan ke bahan ini untuk memenuhi sifat mekanik yang diperlukan. Due to the use of high-performance coupling agent, it has been determined that there are few free electrons on the surface and there is no possibility of electrochemical corrosion. Karena penggunaan agen kopling berkinerja tinggi, telah ditentukan bahwa ada beberapa elektron bebas di permukaan dan tidak ada kemungkinan korosi elektrokimia. It can resistant to almost 99% of the chemical medium. Dapat tahan terhadap hampir 99% dari media kimia. The maximum working temperature can reach 150°C, and its service life is 6-10 times longer than 2205, CD4MCU,Cr30 etc.. Suhu kerja maksimum bisa mencapai 150 ° C, dan umur layanannya 6-10 kali lebih lama dari 2205, CD4MCU, Cr30 dll.
Parameter Teknis
Model |
Mengalir (m³ / jam) |
Kepala |
Kecepatan putar |
Efisiensi tertinggi |
NPSHr (m) |
50DCS-250 |
30-50 |
15-28 |
1450 |
40 |
1.4 |
50DCS-310 |
30-60 |
25-38 |
1450 |
45 |
1.5 |
50DCS-350 |
30-60 |
35-50 |
1450 |
43 |
1.8 |
65DCS-250 |
50-80 |
15-28 |
1450 |
48 |
1.8 |
65DCS-310 |
50-100 |
25-38 |
1450 |
50 |
2.2 |
65DCS-350 |
50-100 |
35-50 |
1450 |
55 |
2.2 |
80DCS-250 |
70-140 |
15-25 |
1450 |
61 |
2.5 |
80DCS-310 |
70-140 |
25-38 |
1450 |
62 |
2.5 |
80DCS-350 |
70-160 |
35-50 |
1450 |
63 |
2.8 |
100DCS-310 |
100-220 |
20-35 |
1450 |
57 |
2.8 |
100DCS-350 |
100-220 |
35-48 |
1450 |
60 |
2.8 |
125DCS-310 |
120-250 |
18-33 |
1450 |
62 |
3 |
125DCS-350 |
120-290 |
35-48 |
1450 |
62 |
3 |
150DCS-310 |
200-400 |
18-33 |
1450 |
64 |
3.5 |
150DCS-350 |
200-500 |
25-45 |
1450 |
65 |
3.5 |
Keuntungan
Bahan logam: | Bahan Komposit Serat Karbon Baru: |
|
|

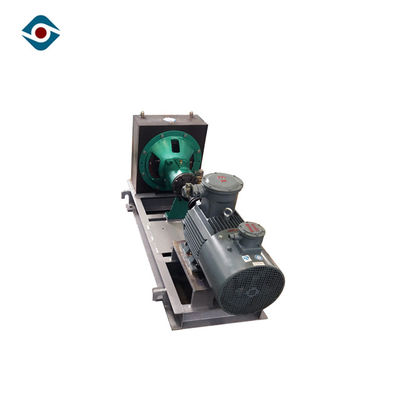

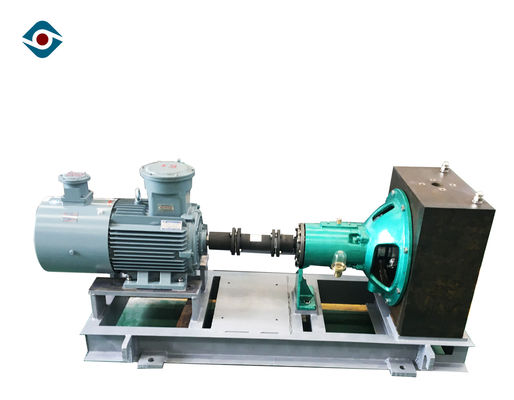

Gambar Produk
Faq
1. Q: Apakah Anda produsen atau perusahaan dagang?
A: Kami adalah produsen yang didirikan pada tahun 1995, produsen profesional pompa proses kimia dan mixer hemat energi dengan pengalaman lebih dari 20 tahun.
2. Q: Apa waktu pengiriman Anda?
A: Pesanan batch akan dikirim dalam waktu 40 hari kerja setelah menerima setoran.
3. Q: Apa kebijakan layanan garansi Anda?
A: 12 Bulan untuk semua produk, dan beberapa produk garansi 24 bulan.
4. T: Informasi apa yang perlu saya tawarkan untuk penawaran?
A: Sedang: ____________ PH: ________
Gravitasi Spesifik: _______ Suhu: _________
Kapasitas / Aliran: ________ m3 / jam Head: _________m
Tegangan: ____________V Frekuensi: _________Hz
Kekuasaan: _____________ KW
5. Q: Berapa jumlah minimum Anda?
A: Satu set juga menyambut kami.
