Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Bahan: | Bahan Komposit Serat Karbon Baru | Max Flow: | 400m3 / jam, 7m3 / mnt |
---|---|---|---|
Max Head: | 50 m | Kekuasaan: | 160Kw |
Suhu: | -20C-105C; -20C-105C; 68°F-302°F 68 ° F-302 ° F | Efisiensi: | 17-88% |
Cahaya Tinggi: | corrosion resistant pumps,carbon fiber pump |

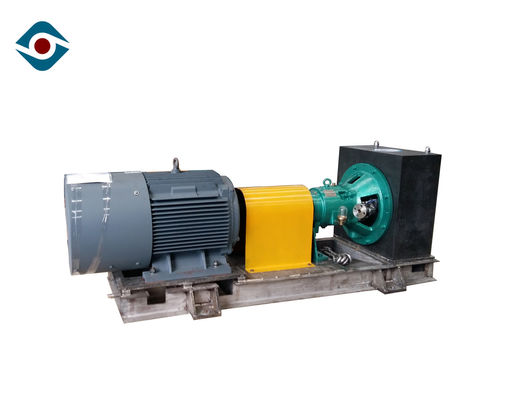

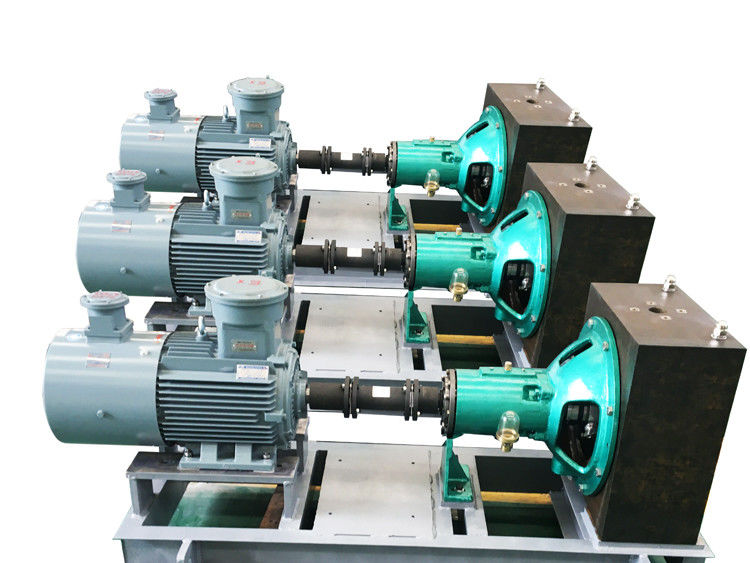

Pompa Cairan Tahan Kimia Bahan Kimia Anti Bocor Jenis Baru Motor Listrik Didorong
Deskripsi Produk
The new carbon fiber composite material is our self-developed high-strength composite material, and has obtained national invention patent (patent number ZL201310597859.0, ZL201310343890.1). Bahan komposit serat karbon baru adalah bahan komposit kekuatan tinggi yang dikembangkan sendiri, dan telah memperoleh paten penemuan nasional (nomor paten ZL201310597859.0, ZL201310343890.1). This material, based on carbon fiber and silicon carbide, with US imported special cross-linking agent, is made by chemically reacting at high temperature, and has extreme high corrosion resistance and wear resistance. Bahan ini, berdasarkan serat karbon dan silikon karbida, dengan agen pengikat silang khusus impor AS, dibuat dengan bereaksi secara kimiawi pada suhu tinggi, dan memiliki ketahanan terhadap korosi dan ketahanan aus yang sangat tinggi. The hardness of silicon carbide is almost as high as that of the diamond, so it has excellent wear resistance. Kekerasan silikon karbida hampir setinggi berlian, sehingga memiliki ketahanan aus yang sangat baik. Carbon fiber can improve the toughness of material to meet the flexural performance. Serat karbon dapat meningkatkan ketangguhan material untuk memenuhi kinerja lentur.
Deskripsi Model
80DCS-315:
80 --------------- Diameter outlet
315 ---------------- Diameter impeller
DCS ----------------- Pompa bahan komposit serat karbon baru
Parameter Teknis
Model |
Mengalir (m³ / jam) |
Kepala |
Kecepatan putar |
Efisiensi tertinggi |
NPSHr (m) |
50DCS-250 |
30-50 |
15-28 |
1450 |
40 |
1.4 |
50DCS-310 |
30-60 |
25-38 |
1450 |
45 |
1.5 |
50DCS-350 |
30-60 |
35-50 |
1450 |
43 |
1.8 |
65DCS-250 |
50-80 |
15-28 |
1450 |
48 |
1.8 |
65DCS-310 |
50-100 |
25-38 |
1450 |
50 |
2.2 |
65DCS-350 |
50-100 |
35-50 |
1450 |
55 |
2.2 |
80DCS-250 |
70-140 |
15-25 |
1450 |
61 |
2.5 |
80DCS-310 |
70-140 |
25-38 |
1450 |
62 |
2.5 |
80DCS-350 |
70-160 |
35-50 |
1450 |
63 |
2.8 |
100DCS-310 |
100-220 |
20-35 |
1450 |
57 |
2.8 |
100DCS-350 |
100-220 |
35-48 |
1450 |
60 |
2.8 |
125DCS-310 |
120-250 |
18-33 |
1450 |
62 |
3 |
125DCS-350 |
120-290 |
35-48 |
1450 |
62 |
3 |
150DCS-310 |
200-400 |
18-33 |
1450 |
64 |
3.5 |
150DCS-350 |
200-500 |
25-45 |
1450 |
65 |
3.5 |
Keuntungan Proses Cast
Setelah mempelajari sifat-sifat material, perusahaan kami telah menemukan proses pembuatan khusus.
Thermal curing casting: The entire manufacturing process of DCS materials is carried out under vacuum and high temperature. Pengecoran curing termal: Seluruh proses pembuatan bahan DCS dilakukan di bawah vakum dan suhu tinggi. The combination of coupling agent, tantalum carbide and carbon fiber is perfect. Kombinasi agen penghubung, tantalum karbida dan serat karbon sangat sempurna.
Cold-cure casting: Some pumps may have voids, and then repair materials are essential to repair it. Pengecoran cold-cure: Beberapa pompa mungkin memiliki lubang, dan kemudian memperbaiki bahan sangat penting untuk memperbaikinya. The method is cold-cure casting, but the material properties are far less than thermal curing. Metodenya adalah cold-cure casting, tetapi sifat materialnya jauh lebih sedikit daripada thermal curing.
Keuntungan
Perbandingan dengan Bahan Lain
Tes kontras antara material komposit serat karbon dan material 2507: dalam kondisi yang sama, medium: F, CI> 800ppm, mengandung asam sulfat 12% dan kandungan padat 30%, dan suhunya 90 ℃
1) Bahan logam memiliki ketahanan korosi dan ketahanan aus yang relatif rendah
Fitur Desain Pompa
