Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Max. Aliran: | 500m3 / jam, 139l / s | Max. Kepala: | 70 meter |
|---|---|---|---|
| penggunaan: | Lumpur atau cairan dengan padatan | Kaliber: | DN 160mm ~ 650mm |
| Kuantitas min Order: | Bagian 1 | Bahan: | Besi cor dan stainless steel |
| Menyoroti: | pompa sentrifugal submersible vertikal,pompa kimia submersible |
||

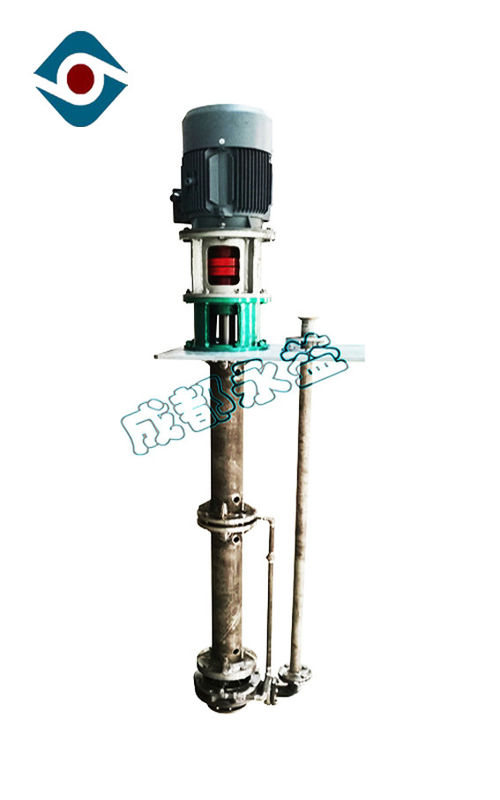

Pompa Submersible Suhu Tinggi Industri / Pompa Perendaman Poros Panjang Vertikal Berkualitas
Deskripsi Produk

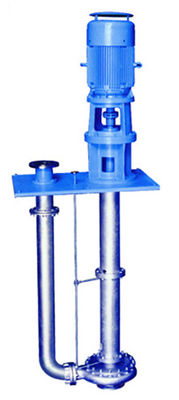

Pompa seri ZAL adalah pompa sentrifugal terendam vertikal satu tahap, hisap tunggal, vertikal dengan poros Panjang. Pompa ini dirancang sesuai dengan standar IS05199. Poros pompa didukung oleh bantalan geser pada penutup pompa dan badan bantalan geser; bantalan atas mengadopsi bantalan anti-abrasif dan dilumasi oleh pelumas dasar lithium.
Parameter Teknis
| Model | putar kecepatan n = 2950r / mnt | putar kecepatan n = 1475r / mnt | ||||||
| Aliran (m3 / jam) | Head (m) | ρ = 1 | ρ = 1.35 | Mengalir (m3 / jam) | Kepala (m) | ρ = 1 | ρ = 1.35 | |
| Tenaga motor (KW) | Tenaga motor (KW) | |||||||
| ZAL25-200 | 7.5-11.5 | 28-49 | 2.2-5.5 | 3-7.5 | 4-5.8 | 6.5-12 | 0.75-1.1 | 0.75-1.1 |
| ZAL25-250 | 10.8-12.5 | 46-78 | 5.5-11 | 7.5-15 | 5.4-6.3 | 11.5-19.5 | 1.1-1.5 | 1.5-2.2 |
| ZAL25-315 | 15.3-20 | 74-130 | 15-30 | 22-37 | 7.6-10 | 18.5-32 | 2.2-3 | 2.2-4 |
| ZAL40-160 | 20-28 | 16-33 | 2.2-5.5 | 3-7.5 | 9.5-14 | 4.5-8 | 0.75-1.1 | 0.75-1.1 |
| ZAL40-200 | 18-29 | 20-53 | 4-11 | 5.5-15 | 9.5-14.5 | 7-13 | 1.1-1.5 | 1.1-2.2 |
| ZAL40-250 | 21-32 | 47-78 | 7.5-18.5 | 11-22 | 10.5-16 | 11-19.5 | 1.1-3 | 1.5-4 |
| ZAL40-315 | 29-42 | 61-115 | 15-37 | 22-45 | 15-21 | 15-29 | 3-5.5 | 4-7.5 |
| ZAL50-160 | 31-50 | 17-34 | 3-11 | 4-15 | 16.5-25 | 4-8.4 | 0,75-1,5 | 1.1-2.2 |
| ZAL50-200 | 43-62 | 28-82 | 7.5-18.5 | 11-22 | 22-31 | 7-13 | 1.1-3 | 1.5-3 |
| ZAL50-250 | 50-70 | 45-82 | 15-30 | 18.5-37 | 26-35 | 11-20 | 2.2-4 | 3-5.5 |
| ZAL50-315 | 57-87 | 57-115 | 22-55 | 30-75 | 30-44 | 14-28 | 3-11 | 4-11 |
| ZAL50-400 | 60-82 | 102-194 | 45-110 | 75-160 | 30-41 | 25-48 | 7.5-15 | 11-22 |
| ZAL80-160 | 66-94 | 17-32 | 5.5-15 | 7.5-18.5 | 34-47 | 4-8 | 1.1-2.2 | 1.1-3 |
| ZAL80-200 | 70-103 | 30-54 | 11-30 | 15-37 | 36-51 | 7.5-12.5 | 1.5-4 | 2.2-5.5 |
| ZAL80-250 | 87-127 | 45-82 | 22-45 | 30-75 | 46-64 | 11-20 | 3-7.5 | 4-11 |
| ZAL40-315 | 90-141 | 74-127 | 37-90 | 45-132 | 45-70 | 18-33 | 5.5-15 | 7.5-18.5 |
| ZAL80-400 | 116-171 | 95-187 | 75-160 | 90-220 | 53-85 | 25-46 | 11-22 | 15-30 |
| ZAL100-160 | 110-162 | 12-29 | 7.5-22 | 11-30 | 55-81 | 3-7.2 | 1.1-3 | 1.5-4 |
| ZAL100-200 | 135-193 | 26-50 | 18.5-45 | 30-55 | 70-95 | 6-12.5 | 3-5.5 | 3-7.5 |
| ZAL100-250 | 170-230 | 44-79 | 37-75 | 45-90 | 90-115 | 10-20 | 5.5-11 | 7.5-15 |
| ZAL100-315 | 170-250 | 71-126 | 75-132 | 75-200 | 86-125 | 17.5-31 | 11-18.5 | 11-30 |
| ZAL100-400 | 224-300 | 105-194 | 110-250 | 160-355 | 115-150 | 26-48 | 15-37 | 22-45 |
| ZAL150-250 | 310-190 | 40-74 | 55-110 | 75-160 | 155-195 | 10-18.5 | 11-15 | 11-22 |
| ZAL150-315 | 310-442 | 68-125 | 90-250 | 132-355 | 150-220 | 17-32.5 | 15-30 | 18.5-45 |
| ZAL150-400 | 400-520 | 113-502 | 200-400 | 280-500 | 200-260 | 28-51 | 30-55 | 37-75 |
| ZAL150-500 | 208-300 | 45-77 | 45-110 | 75-132 | ||||
| ZAL150-630 | 220-360 | 60-115 | 75-200 | 110-250 | ||||
| ZAL200-250 | 470-610 | 32-72 | 75-160 | 90-220 | 240-305 | 8-17.5 | 11-22 | 15-30 |
| ZAL200-315 | 480-710 | 65-122 | 132-355 | 185-450 | 350-350 | 15-30 | 18.5-45 | 22-55 |
| ZAL200-500 | 330-495 | 48-84 | 75-185 | 90-220 | ||||
| ZAL200-560 | 350-540 | 62-105 | 110-250 | 132-355 | ||||
| ZAL200-630 | 372-580 | 75-132 | 132-315 | 185-450 | ||||
| ZAL250-315 | 424-545 | 13-27 | 30-55 | 37-75 | ||||
| ZAL250-400 | 500-660 | 24-49 | 53-132 | 75-160 | ||||
| ZAL250-500 | 630-800 | 42-82 | 110-280 | 160-400 | ||||
| ZAL250-560 | 665-860 | 57-106 | 160-400 | 250-560 | ||||
| ZAL300-400 | 780-1050 | 26-48 | 90-200 | 132-280 | ||||
| ZAL300-500 | 870-1240 | 42-78 | 160-450 | 250-560 | ||||
| ZAL300-560 | 950-1340 | 56-104 | 280-560 | 400-800 | ||||
| ZAL300-630 | 950-1450 | 75-132 | 355-1000 | 500-1400 | ||||
| ZAL300-500 | 1300-1870 | 38-74 | 220-630 | 315-1000 | ||||
| ZAL300-560 | 1500-2040 | 54-98 | 355-900 | 500-1250 | ||||
Dimensi Instalasi
Bahan pilih
Kami menawarkan berbagai jenis bahan paduan bermutu tinggi anti-abrasif dan anti-korosif kepada pelanggan, seperti 304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, hastelloy, paduan K, 20 # paduan dan Lewmet85 ＃ paduan
Kurva Kinerja
Aplikasi
Diterapkan secara luas ke banyak bidang atau proses seperti minyak bumi, kimia, asam, alkali, tanah jarang, peleburan, pestisida, pewarna, obat-obatan, pembuatan kertas, lempeng listrik, elektrolisis, pengawetan asam, radio, kertas timah, organisasi penelitian dan pertahanan nasional, dll.
